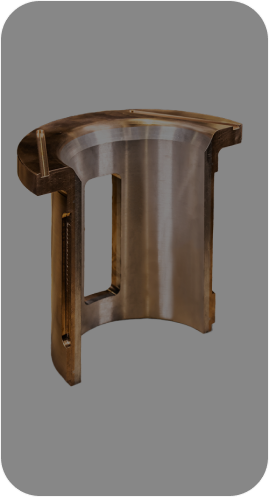

Sleeve and plain bearing

Production, regeneration & white metal pouring

TECHNOLOGY

Our suppliers not only manufacture but also regenerate used cast steel and cast iron sleeves. They have many years of experience in producing sleeve bodies from brass and bronze. They also perform surface coating of bushing with white metal.

PARAMETER
Our sales offer also includes large size centrifugal bushes, centrifugal  rings and centrifugal sleeves. Diameters range: 80 -3000 mm Minimum wall thickness: 10 mm Maximum length: 1000 mm Alloy:
CuAl10Fe2
CuSn11P
CuSn7Zn4Pb7
CuZn33Pb
CuAl10Fe
UE12
CuAl10Ni3Fe2
CuSn11Pb2
CuSn10Pb10
CuZn37Pb
CuAl10Ni
B555
CuAl10Fe5Ni5
CuSn12
CuZn25Al5Mn4Fe3
CuZn25Al5
CuAl11Ni
RG7
CuAl11Fe6Ni6
CuSn12Ni2
CuZn34Mn3Al2Fe1
CuZn34Al2
CuSn5ZnPb
B1010
CuSn10
CuSn5Zn5Pb5
CuZn32Al2Mn2F31
CuZn35Al1
CuSn7ZnPb
C95800
B101
BS1400 AB2
C52400
C91700
C83600
C93200
C90500
C86300
C86200
CC495K
CC762S
CC480K
CC333G
CC332G
CC764S
CC493K
CC483K
CC481K
Standards: PN-EN 1982,  DIN 1705, 1709, 1714,  PN 91/H-87026, ASTM B271, BS 1400  Material type: Aluminium Bronze, Tin bronze, Leaded bronze; Brass alloy, Special alloy

Our suppliers have a separate department for manufacturing new bronze or brass sleeves, which also regenerates used cast steel and cast iron sleeves. Their technology enables the covering of bushing walls with white metal. The sleeves and sliding bearings they manufacture ensure high durability thanks to the centrifugal casting process.

Bearing alloys typically demonstrate the following properties: Small thermal expansion within the working temperature range of the bearing, Good thermal conductivity, Abrasion resistance, Small friction coefficient, Capacity to absorb foreign bodies and adapt to the surface of the journal, Resistance to acids present in some greases.
