Specialised distributor of bronze and brass castings and machining services
We offer a wide range of copper products. These are mainly global standard bronze alloys – a complete range of bronze alloys such as tin bronze, lead bronze, aluminum bronze, brass alloys, and special alloys.
WHO WE ARE?
We are a team of salespeople with many years of experience in the casting industry. Our aim is to build long-term partnerships based on mutual respect and we want to become the first-choice supplier. We work hard to offer high-quality products and services at competitive prices. We are always here to support our partners and provide the best possible offers.
CASTING TYPES OFFERED

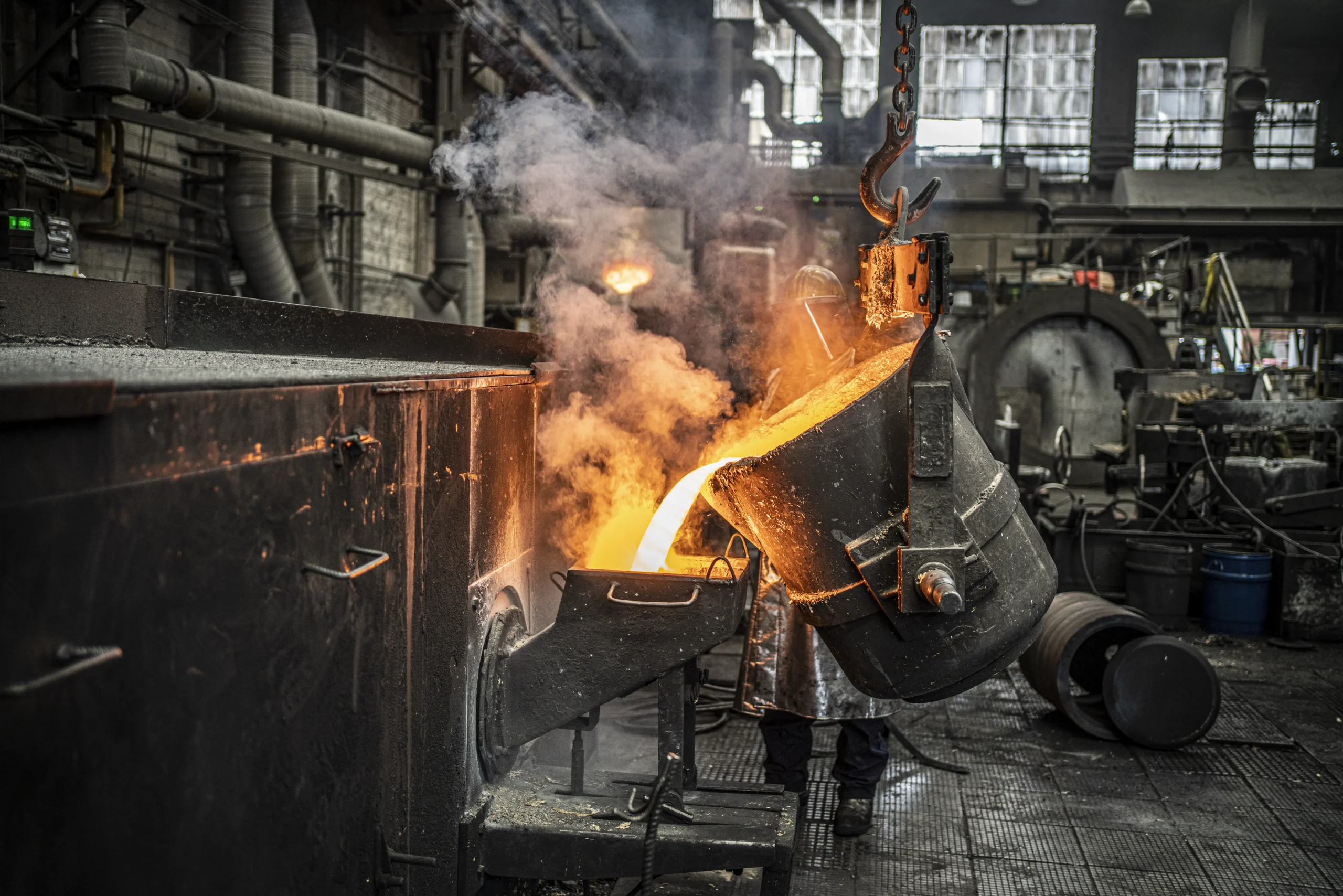

We specialize in the supply and distribution of copper-based castings produced using three manufacturing methods: centrifugal casting, gravity casting, and continuous casting. The appropriate manufacturing process is selected based on the required geometry, mechanical properties, and application of the final component.
All castings are manufactured by certified foundry from bronze and brass alloys in accordance with international standards (DIN EN 1982:1998-12, PN-EN 1982, DIN 1705, 1709, 1714, PN 91/H-87026, ASTM B271, BS 1400).
Available dimensions:
- Diameter range: 80 mm – 3,000 mm
- Maximum cast length: 1,000 mm
- Maximum cast weight: 7,000 kg
We supply castings with full technical documentation, including chemical composition and mechanical properties. Upon request, we offer testing and inspections such as ultrasonic, X-ray, dye penetrant, and metallurgical testing, with certificates of conformity according to EN 10204 (2.2, 2.3, 3.1B, and 3.2).
CASTING TYPES OFFERED
PRODUCTS EXAMPLE
Hohenlimburger supplies bushings and rings made of copper and aluminum alloys, produced using the centrifugal casting process, which comply with international and local foundry standards (DIN EN 1982:1998-12, PN-EN 1982, DIN 1705, 1709, 1714, PN 91/H-87026, ASTM B271, BS 1400), as well as special alloys.
The range of materials offered includes bronze, aluminum bronze, lead bronze, special bronze, brass alloys and special alloys.
Production capabilities:
- Maximum outer diameter: 3000mm
- Number of alloys: 115+
- Minimum outside diameter: 80 mm
- Minimum wall thickness: 10 mm
- Maximum casting weight: 7,000 kg
- Maximum casting length: 1,000 mm
All products are manufactured by certified foundry from bronze, aluminum bronze, lead bronze, brass alloys, and special copper alloys, in accordance with international and local foundry standards (DIN EN 1982:1998-12, PN-EN 1982, DIN 1705, 1709, 1714, PN 91/H-87026, ASTM B271, BS 1400).
PRODUCTS EXAMPLE
BRONZE AND BRASS
STANDARDS
Our suppliers use centrifugal casting to produce bushes, rings and sleeves using all copper alloys covered by the global standards: PN-EN 1982, DIN 1705, 1709, 1714, PN 91/H-87026, ASTM B271, BS 1400, as well as special alloys.
Long-term cooperation with a certified foundry guarantees consistent quality, short lead times and reliable deliveries.
BRONZE AND BRASS
STANDARDS
Our suppliers use centrifugal casting to produce bushes, rings and sleeves using all copper alloys covered by the global standards: PN-EN 1982, DIN 1705, 1709, 1714, PN 91/H-87026, ASTM B271, BS 1400, as well as special alloys.
Long-term cooperation with a certified foundry guarantees consistent quality, short lead times and reliable deliveries.
MACHINING
Hohenlimburger offers access to high quality machining (CNC) services. We cooperate with CNC precision machining partners and offer top quality services for short and long series in all sorts of materials e.g. bronze, brass, steel, stainless steel, grey cast iron and plastic.
BASIC TECHNICAL PARAMETERS:
MILLING
| CNC : | 4500 x 2500 x 1500 [mm] |
| Conventional: | 1300 x 400 x 500 [mm] |
TURNING
| CNC: | 3200 x 2000 [mm] |
| Conventional: | 900 x 3200 [mm] |
DRILLING
| Hole diameters: | 1 – 80 [mm] |
| Fine boring: | depth up to 30 x diam [mm] |
| OD < 130; | max length 200 [mm] |
| OD > 130; | max length 800 [mm] |
CUTTING
| Band saw: | max Ø 1600 [mm] |
| Hydratableic guillotine shears: | <3 [mm] max L=2400 [mm] <6 [mm] max L=1500 [mm] |
| Other (outsourced): | Plasma cutting, laser cutting, water jet cutting (outsorced) |
GRINDING
| Grinding of shafts and holes: | Ø max 320; max length 1500 [mm] |
| Surface grinding: | 1000 x 300 x 330 [mm] |
| Accuracy: | tolerance class IT6 |
COPPER ALLOYS
Hohenlimburger offers bushes, rings and sleeves using all copper alloys covered by global standards: DIN 1705, 1709, 1714, PN 91/H-87026, ASTM B271, BS 1400 as well as using special alloys.
We offer the highest quality tin bronze, leader bronze, aluminium bronze, brass alloy and special alloys.
INDUSTRIAL APPLICATIONS
QUALITY AND CERTIFICATES
Our suppliers follow quality assurance systems such as ISO 9001:2009, ISO 18001-2004, and ISO 14001-2005. They have their own laboratories to test the mechanical properties of products, including hardness, elongation, and micrometer measurements. They also conduct penetration and ultrasonic tests and issue certificates of compliance according to EN 10204-2.2, 2.3, and 3.1B standards. Additionally, they have an air-conditioned measuring room equipped with high-quality measuring tools that are regularly calibrated. The measuring equipment includes: calipers, altimeter, depth calipers, inside micrometers, bore gauges, outside micrometer and roughness tester.
